ceiling, panel & partition extrusions

These systems succeed visually when the geometry repeats cleanly across long runs, aligned vertical planes and junctions between adjoining elements. That usually depends on consistent face widths, stable returns, predictable reveals and clean alignment through trims, joints and perimeter details.

If the profile set does not repeat accurately, installers end up compensating on site. The result is often inconsistent lines, uneven joints and visible variation across the finished installation.

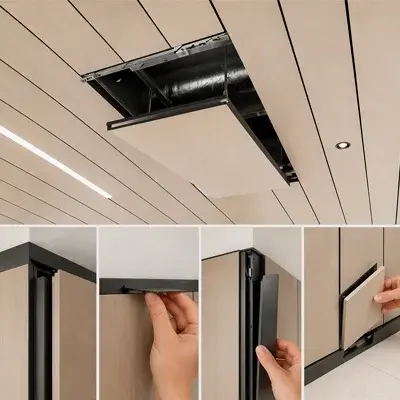

Many ceiling, panel and partition details rely on features that need to assemble securely and still allow later removal where access is required. Retention lips, clip-in covers, removable trims and infill details all need to work reliably without excessive force or damage to the finished edges.

That matters not only during first installation, but through later maintenance, replacement and service access, where the profile set needs to retain fit and appearance over repeated cycles.

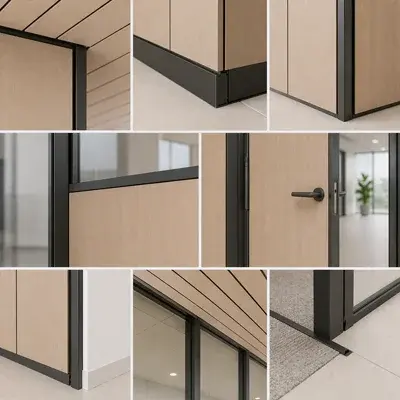

A large part of performance in these systems comes from how the profiles meet surrounding components. Head details, base details, perimeter trims, corner conditions, transitions, closures and abutments all affect how cleanly the system finishes and how practical it is to install.

In partition applications especially, interfaces to glazing, doors, adjacent wall finishes and service zones need to be considered as part of the profile set, not left to site adjustment.

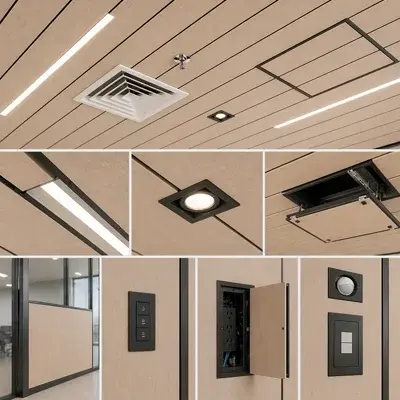

Ceiling systems often need to accommodate lighting, diffusers, sprinklers and access panels. Wall and partition systems may also need to work around glazing, switches, controls, service modules and removable access points.

Profiles used in these areas need to support repeat machining, controlled cut-outs and stable geometry around penetrations, while still maintaining clean visual lines through the finished system.

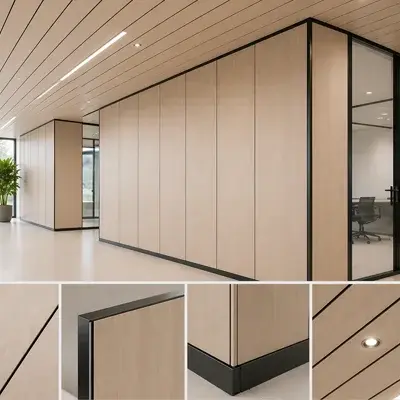

Ceiling, panel and partition components are often seen at short distance and under strong lighting, so finish quality becomes part of the performance requirement. Surface quality, edge definition, handling protection and continuity across repeat batches all affect the final result.

For projects delivered in phases, this also means maintaining consistency across later releases so visible elements continue to match in appearance and quality.

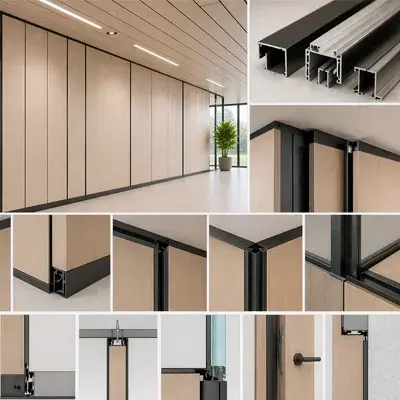

The best results come from profile sets that are designed around how the system will actually be made, fitted and used. That can include controlled visible faces, workable engagement details, sensible datum points for machining and geometry that supports both finish quality and repeat installation.

In ceiling, panel and partition systems, practical profile design also means considering head and base details, closure trims, access requirements, glazing and door interfaces, abutment conditions and how adjoining elements will line through across the full installation.

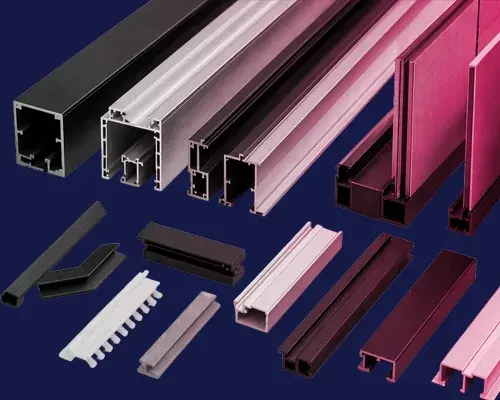

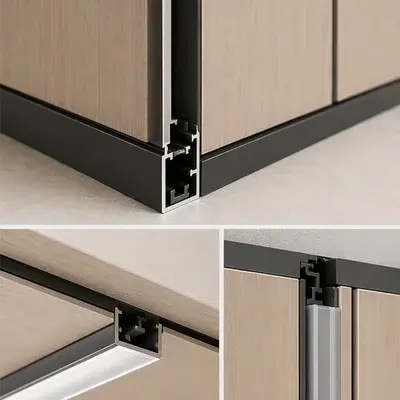

Many of these applications benefit from using aluminium and plastic profiles together. Aluminium is often used where strength, straightness, finish quality and structural support are needed, while plastic profiles can help with protection, isolation, controlled contact and quieter engagement.

That combination is particularly useful for trims, inserts, setting details, closure features and contact points where the profile set needs to do more than provide structure alone.

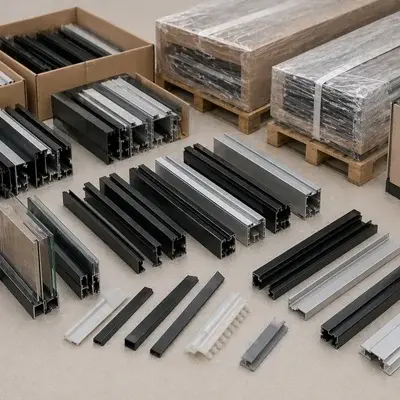

Ceiling, panel and partition packages are often released in stages by floor, zone, room type or fit-out sequence. That makes consistency across repeat orders just as important as the initial section design.

Where projects involve later releases, replacements or phased installation, the profile set needs to remain controlled across manufacture, preparation and supply so the finished system continues to line through properly.
